SAFS Al Wood - SHIPLAP

unistone logo 1
Profile
Area of Application:Straight
Thickness1.5mm to 3.0 mm
SizesWidth 110 mm
Maximum length of panelMax Length 3.66 meter
SupportFramework of GI or aluminium rails
InstallationSAFS cleats
MaterialExtruded Aluminium
EN AW 6063 T6 Alloy
FinishSDP Wood Finish Coatings

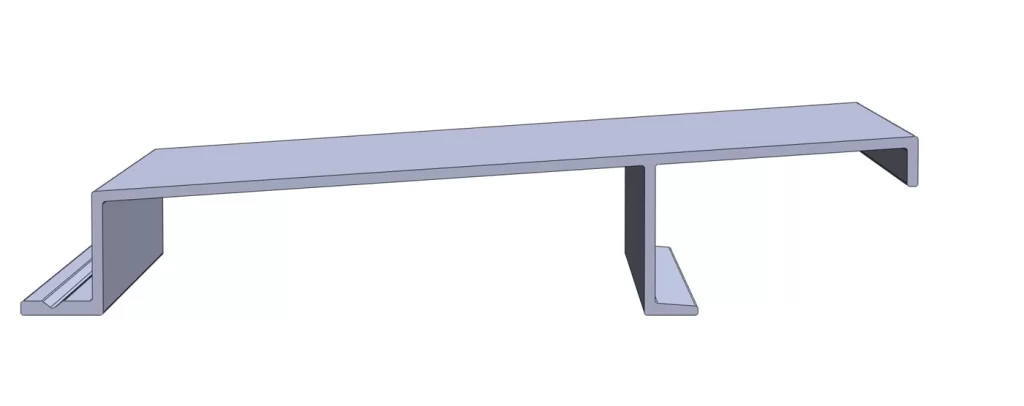

Shiplap 3D e1716801476102

Introducing SAFS Al Wood - SHIPLAP by Unistone

Enhancing Building Exteriors for Everyone

Unistone presents SAFS Al Wood – SHIPLAP, a superior solid aluminium facade system designed for exceptional aesthetics and durability.

Why Choose SAFS Al Wood – SHIPLAP by Unistone?

  • Aesthetic Excellence: Enhances the visual appeal with a wood-like finish.

  • Durability: Long-lasting and ideal for exterior use.

  • Eco-Friendly: Made from 100% recyclable aluminium.

  • Residual Value: Cost-effective for future facade changes.

Elevate your building exteriors with SAFS Al Wood – SHIPLAP by Unistone. The ideal combination of beauty, strength, and ease of installation.

PRODUCT CHARACTERISTICS

Fingerprint

Corrosion Free

Latest Technology

Extruded Aluminium

Resistant to UV rays

UV Resistance

Wind Proof 1

Wind Resistant

Easy Installation

Easy Installation

No Maintenance

Maintenance Free

Light Weight

Lightweight

Recycle

Environment Friendly

Non Combustible

Non Combustible

Concealed Application

Concealed Application

3D MODEL

Click and drag to explore the 3D model.

Introducing SAFS Al Wood - SHIPLAP by Unistone

Shiplap IMAGE e1716801370976

Key Features

  • Versatile Application: Perfect for straight area installations with a seamless finish.

  • Thickness Options: Ranges from 1.5mm to 3.0mm.
  • Customizable Sizes: Width of 110mm, with a maximum panel length of 3.66 meters.

  • Support Framework: Compatible with GI or aluminium rails.

  • Concealed Fixing: Achieves a clean look with no visible fasteners.
  • Easy Installation: Efficient process using SAFS cleats.

  • Premium Material: Crafted from extruded Aluminium EN AW 6063 T6 Alloy.

  • Natural Wood Substitute: Offers the aesthetic of wood, is termite-proof, and highly durable.

  • UV Resistance: Provides excellent resistance to fading, discoloration, and material degradation due to UV exposure.

  • Elegant Finish: Features SDP Wood Finish Coatings for a sophisticated wood-like appearance.

ASSEMBLY

Read the manual before assembling the product. Before you start the work, inspect the purchased goods carefully for manufacturing defects. Please note that the product installed at variance with the instructions shall void the warranty.



Installation

Finishing

Shiplap 1
Shiplap 1
Cleat
Cleat
Starter
Starter
Top Profile
Top Profile
Aluminium L Angle
Aluminium L Angle
Self Screw
Self Screw
Tube 25X50
Tube 25X50
