SAFS Slats Profiles

Aesthetic Excellence: Enhances visual appeal with a versatile matt finish.
Durability: Long-lasting and ideal for outdoor use.
Eco-Friendly: Made from 100% recyclable aluminium.
Residual Value: Cost-effective for future facade changes.

SAFS - SAFS Slats Profiles

Slats Sizes	SL1 - 38mmX16mm SL2 - 65mmX16mm SL3 - 90mmX16mm	Maximum length of panel	Max length 3.66 meters
Slat Channels Sizes	SCH1 - 30mmX30mm SCH2 - 30mmX50mm SCH3 - 30mmX60mm	Thickness	2 mm to 3 mm
Channel Clapping Sizes	CC1 - 30mmX6mm SCC2 - 60mmX6mm	Material	Extruded Aluminium 6063 T6 alloy
1 Way Post	PA1 50mmX50mm PA2 75mmX75mm PA3 100mmX100mm	Finish	Solid (RAIL color) / SDP wood finish coating
2 WAY POST	PB1 50mmX50mm PB2 75mmX75mm PB3 100mmX100mm	Support	RCC Slab

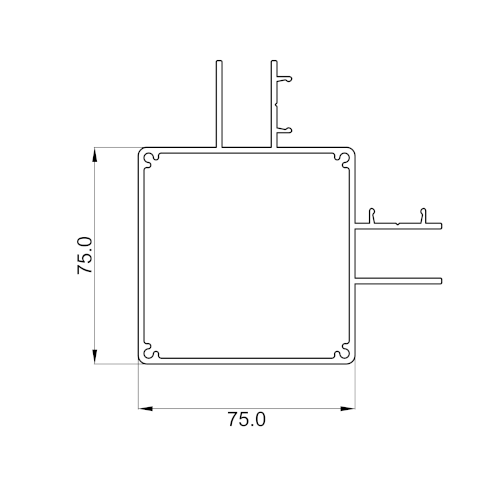

Corner Post	CP1 50mmX50mm CP2 75mmX75mm CP3 100mmX100mm	Installation	SLAT System

Elevating Building Exteriors for Everyone

Unistone introduces SAFS X CLAD – X LINE-180mm, a top-quality solid aluminium facade system designed for outstanding aesthetics.

Elevate your building exteriors with SAFS X CLAD – X LINE-180mm by Unistone. The perfect blend of beauty, strength, and ease of installation.

Versatile Application: Ideal for straight area installations with a seamless look.
Thickness Options: Available in 1.5mm to 2.5mm.
Customisable Size: Width of 125mm, with a maximum panel length of 3.66 meters.
Support Framework: Compatible with GI or aluminium rails.
Concealed Fixing: Ensures a clean appearance with no visible fasteners.
Easy Installation: Streamlined process using SAFS cleats.
Premium Surface Aspect: Matt Finish in any RAL shade by SDP.

A	Slats - 65x16mm or 38X16mm SL 1 \| 2	F	Snap-On Fixing Cover
B	1 - Way Concealed Fixing Post PA 1 \| 2	G	Centre Mullion
C	Concealed Fixing Channel SCH1	H	50X50mm Post Cap
D	In Post Spacers - 10mm; 15mm; 20mm	I	U - Channel Cap
E	10 - 16 16mm Self Tapping Screw	J	Centre Mullion Cap
